Mosaic Array HT 3D Printer
Mosaic Array HT 3D Printer - Image 2
Mosaic Array HT 3D Printer - Image 3
Mosaic Array HT 3D Printer - Image 4
Mosaic Array HT 3D Printer - Image 5

Mosaic Array HT 3D Printer

    $119.99

    ARRAY HT Automated, Scalable & Versatile Request A Quoteor call (813) 280-1115 Your browser does not support our video. Printers 4 Element/HT 3D Printers Storage 1 Cart Stores Competed Print Beds Material Management 4 Palette X 1 Per Element Printer Automation 40 Print beds For Continuous Printing Material 32 Material Pods 8 Per Element Printer Automation 1 Robotic Arm Automatically Removes/Replaces Print…

    SKU: NEK96939597 Category:

      ARRAY HT

      Automated, Scalable & Versatile


      or call (813) 280-1115

      Printers

      4 Element/HT

      3D Printers

      Storage

      1 Cart

      Stores Competed Print Beds

      Material Management

      4 Palette X

      1 Per Element Printer

      Automation

      40 Print beds

      For Continuous Printing

      Material

      32 Material

      Pods

      8 Per Element Printer

      Automation

      1 Robotic

      Arm

      Automatically Removes/Replaces Print Beds

      Increase Throughput

      Large build volume and automated print monitoring means low downtime and high throughput.

      Expand Range

      Print up to 8 materials in a single part with industrial materials, including PEEK, PEKK and Ultem.

      Automate

      With one operator able to run the equivalent of 250 3D printers, 3D printing large production volumes is finally possible.

      Manage Team Workflow With Canvas

      Control all your printing workflows with Canvas. With smart queueing, detailed dashboards and project management you have full control of your print queue and key performance metrics.

      Spend your time where it counts

      Rely on Array’s bed removal and material changing systems so your team spends less time working with printers and more time on other activities.

      Precision printing, every time

      Automated bed leveling ensures your printhead stays the correct distance from the build plate, allowing for greater consistency within your prints.

      Unlock ultimate flexibility with Palette X

      Print with up to 8 materials in a single part to unlock an entirely new range of prints. Mosaic’s Palette X technology brings a new dimension to your parts.

      Types of Array HT Printers

      Array HT Pro

      • 5 ELA HT Printer
      • 5 HT Upgrades
      • 70 Material Pods
      • 56 Type 1 Beds
      • 56 Type 2 Beds
      • 12 HT Print Heads
      • 12 LT Print Heads
      • 2 Storage Carts

      Array HT 32

      • 4 ELA HT Printer
      • 4 HT Upgrades
      • 32 Material Pods
      • 24 Type 1 Beds
      • 24 Type 2 Beds
      • 8 LT Print Heads
      • 8 HT Print Heads
      • 1 Storage Cart

      Array HT 8

      • 4 ELA HT Printer
      • 4 HT Upgrades
      • 8 Material Pods
      • 8 Type 1 Beds
      • 8 Type 2 Beds
      • 8 LT Print Heads
      • 8 HT Print Heads
      • 1 Storage Cart

      Array HT Specifications

      Build Speed: < 100mm/s, max printhead move speed of 200mm/s Build Plate: Spring steel build plate, automatically changed via internal robotic arm
      Heated Bed: 0 – 120°C Thermal Chamber: 0 – 80°C
      Max Nozzle Temperature: 500°C External Fume Extraction: Integrated exhaust fan with optional 3” external fume extraction hook up (not included)
      Dimensions: 355mm Array Weight (No Elements): 925 lbs
      Array Weight (x4 Elements): 1325 lbs Build Envelope: 1.6m x 3.2m x 2.1m (5’2” x 11’2”, 5’2”)

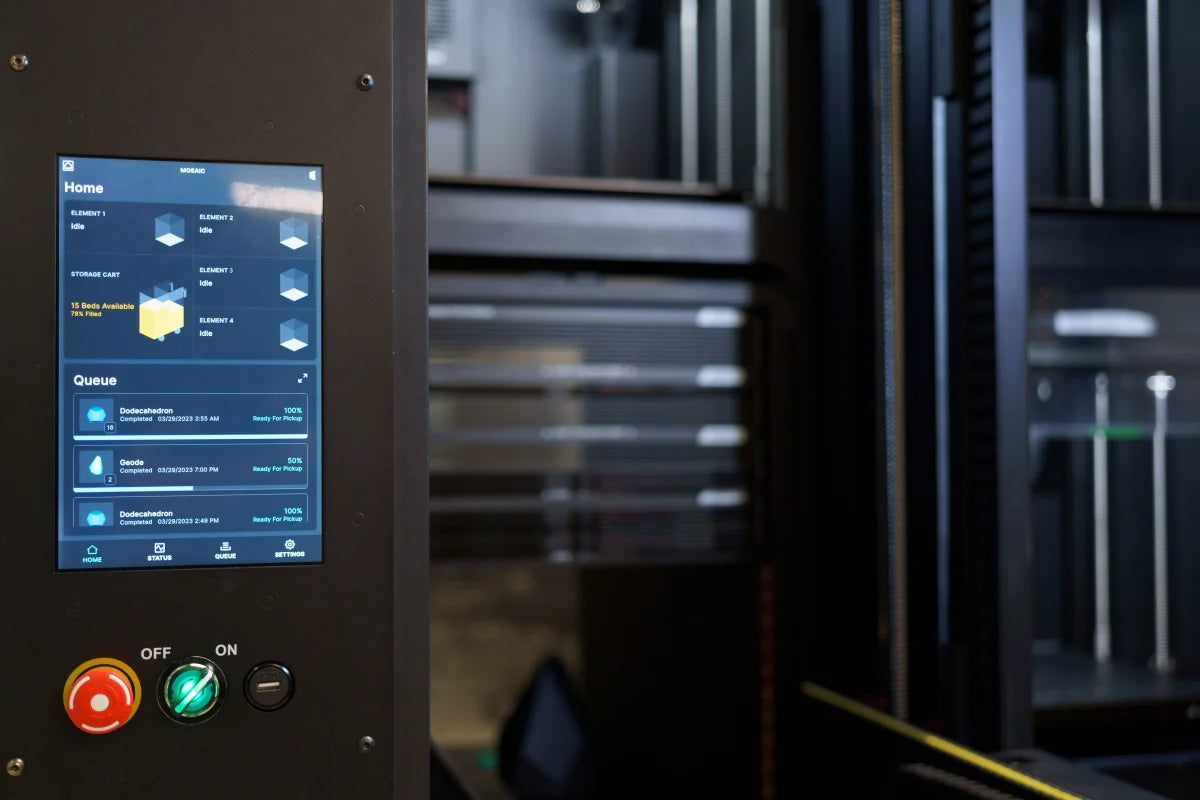

      Power Supply Input: 230V AC, 30A User Interface: 5” color touch screen or remote access from Canvas
      Monitoring: Live camera inside chamber Status Indication: RGB stack light
      Nozzle: 0.4mm hardened steel nozzle Compatible Models: Print Head 0.4, Print Head 0.4 HT
      Serviceability: Modular extruder, tool-less removable in < 60 seconds User Interface: 5” color touch screen or remote access from Canvas
      Max Speed (Travel): 300mm/s XYZ Resolution: 12.5μm, 12.5μm, 0.4μm (X ,Y, Z)
      Layer Resolution: 20-320 microns Supported Materials: Mosaic PLA, Mosaic PETG, Mosaic Matrix, Mosaic ABS, Mosaic Breakaway, Mosaic PEEK (HT), Mosaic PEKK (HT), Mosaic Ultem 9085, Mosaic ESD
      Material Type: Mosaic certified, Non-Mosaic, other materials not supported Material Bays: 8 x 1500cc Material Pods Per Printer (12,000cc/Printer Total) 32 x 1500cc Material Pods in Array (48,000cc/Array Total)
